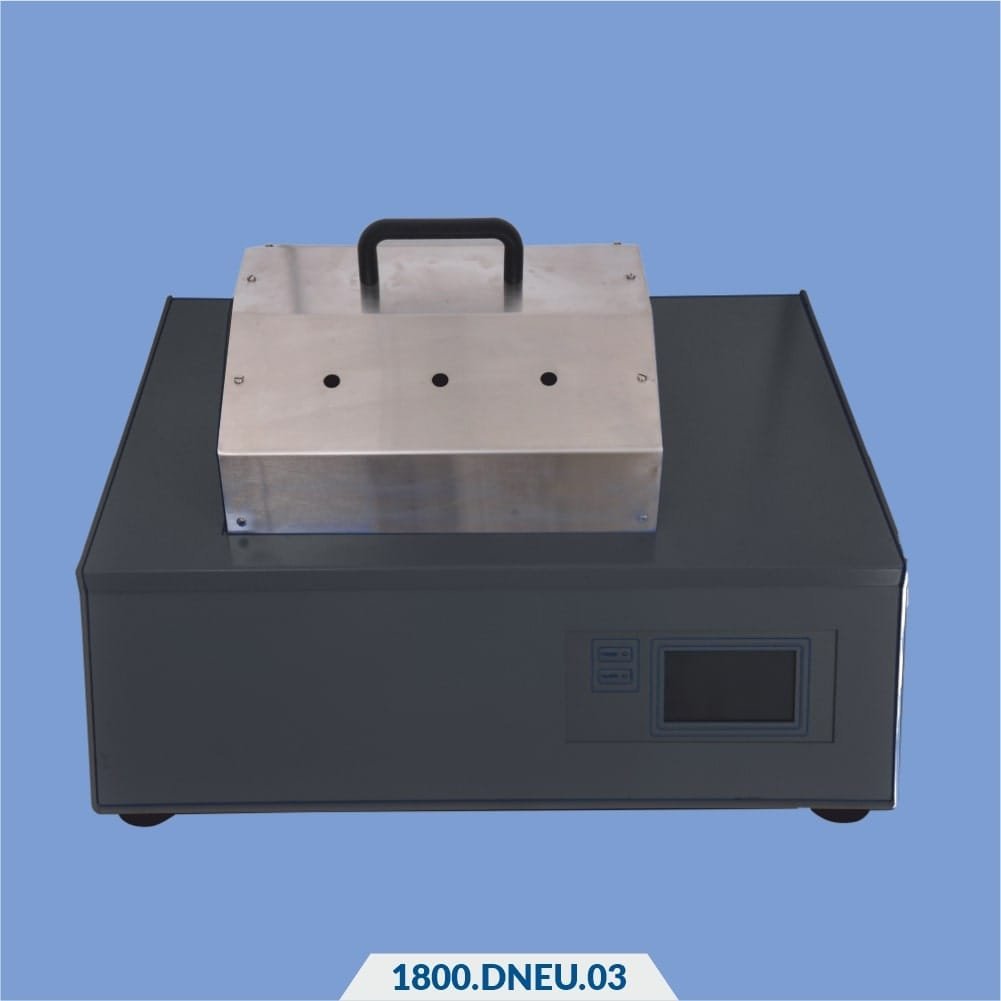

| Model | : | 1800.DNEU.03 |
| Operation | : | Water bath or water bath shaker |
| Material of construction | : | MS with powder coated finish |
| Type of motion | : | Reciprocal motion |
| SPM range | : | 50 to 150 Strokes per minute |
| Movement | : | Linear link guided drive mechanism |
| Movement sensor | : | IR scan sensor |
| Motor | : | Stepper servo motor (Brushless) |
| Drive | : | Servo drive |
| Process controller | : | 4.3” TFT touch screen controller |
| Display | : | Feather touch membrane key pad with touch controller (Power, Heater) |
| Temperature controller | : | PID controller |
| Temperature range | : | 5 Degree above ambient to 100 Degree |
| Temperature accuracy | : | +/- 0.5Degree |
| Temperature sensor | : | Pt 100 |
| No of program | : | 1 program, 5 steps for both shaker and water bath |
| Programmable | : | For Strokes Per Minute, Temperature and Time |
| Heater | : | Immersion Heater |
| Heater power | : | 1500 W |
| Water tank | : | Stainless steel |
| Tank capacity | : | 15 lit |
| Tray | : | Stainless steel, Removable |
| Tray capacity | : | 250ml clamp-9 nos |
| Hood or cover | : | Stainless steel |
| Internal Recirculation pump for Temperature stability | : | Magnetic pump |
| External recirculation pump | : | (optional) magnetic pump |
| Electrical requirement | : | 230V/50Hz/ 6A |
| Unit dimension | : | 25 x 25 x15inches |
