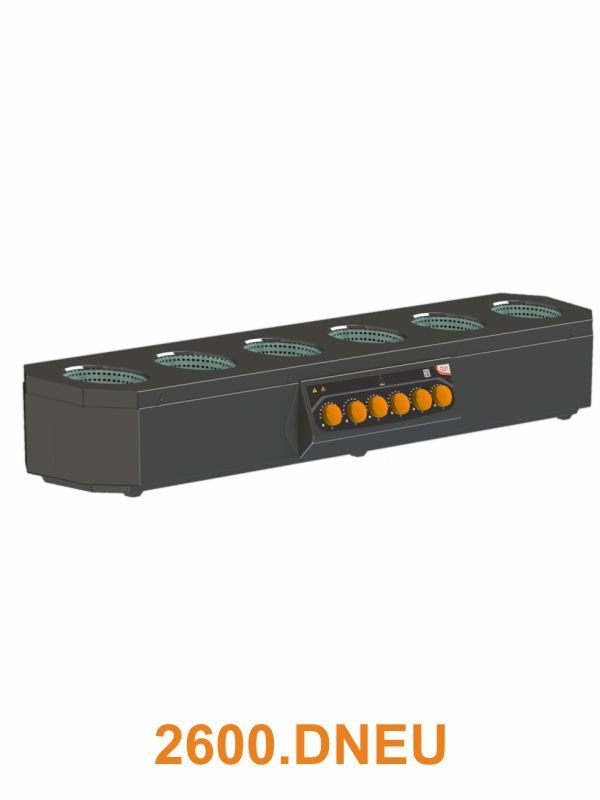

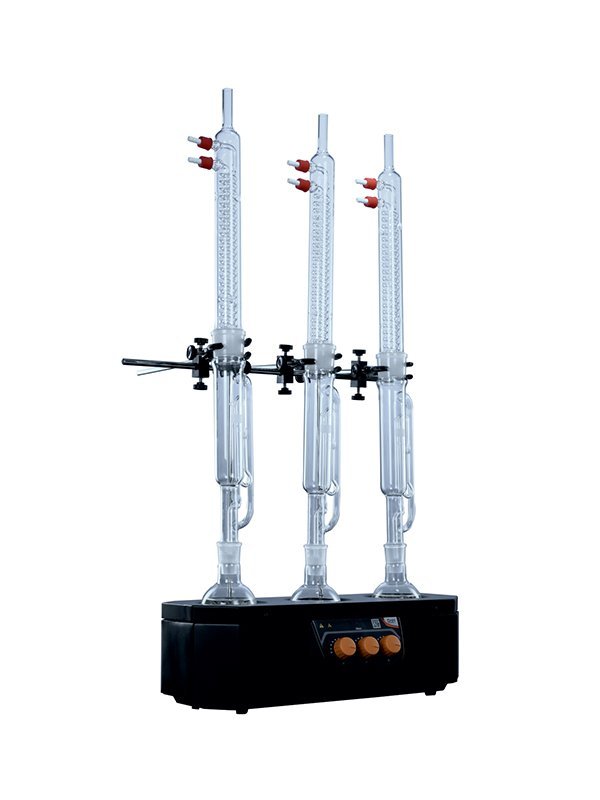

HEATING MANTLE COMBINED UNIT WITH STIRRER 3 POSITION & 6 POSITION
Technical Specification:
| Heating Mantle Body | : | Mild steel |
| Heating Mantle Material | : | Glass Fiber Yarn |
| Mantle Capacity | : | Upto 500 ml |
| Temperature Range | : | Approx. 400°C |
| Heating Control | : | Energy regulator |
| Dimensions | : | 495 x 246 x 200mm |
| Permissible Ambient temperature | : | 5 – 40°C |
| Weight of body | : | 10.2 Kg |
| Permissible relative humidity | : | 80% |
| Voltage | : | 230/115V |
| Frequency | : | 50/60Hz |
| DIN EN 60529 | : | IP 10 |
Also Known as: 2600.EU.01, 2600.EU.02, 2600.EU.03 , 2600.EU.04, 2600.EU.05, 2600.EU.06, 2000.DNEU.01,2000.DNEU.02,2000.DNEU.03,2000.DNEU.04,2000.DNEU.05,2000.DNEU.06
| Item Code(230V/50Hz) | Item Code(115V/60Hz) | Capacity(Ltr) | Watts | No. of Position of regulator |
| ||
|---|---|---|---|---|---|---|---|
| 2600.DNEU.01 | 2600.DNUS.01 | 100 | 600 | 3/3 | |||
| 2600.DNEU.02 | 2600.DNUS.02 | 250 | 600 | 3/3 | |||
| 2600.DNEU.03 | 2600.DNUS.03 | 500 | 750 | 3/3 | |||
| 2600.DNEU.04 | 2600.DNUS.04 | 100 | 1200 | 6/6 | |||
| 2600.DNEU.05 | 2600.DNUS.05 | 250 | 1200 | 6/6 | |||
| 2600.DNEU.06 | 2600.DNUS.06 | 500 | 1500 | 6/6 |
Heating Mantle Combined Unit
Download our Catalogue for more details
For India Visit our Website
| DP | Item Code(230V/50Hz):2600.DNEU.01, Item Code(115V/60Hz):2600.DNUS.01, Capacity(Ltr):100, Watts:600, No. of Position of regulator: 3/3, Item Code(230V/50Hz):2600.DNEU.02, Item Code(115V/60Hz):2600.DNUS.02, Capacity(Ltr):250, Watts:600, No. of Position of regulator: 3/3, Item Code(230V/50Hz):2600.DNEU.03, Item Code(115V/60Hz):2600.DNUS.03, Capacity(Ltr):500, Watts:750, No. of Position of regulator: 3/3, Item Code(230V/50Hz):2600.DNEU.04, Item Code(115V/60Hz):2600.DNUS.04, Capacity(Ltr):100, Watts:1200, No. of Position of regulator: 6/6, Item Code(230V/50Hz):2600.DNEU.05, Item Code(115V/60Hz):2600.DNUS.05, Capacity(Ltr):250, Watts:1200, No. of Position of regulator: 6/6, Item Code(230V/50Hz):2600.DNEU.06, Item Code(115V/60Hz):2600.DNUS.06, Capacity(Ltr):500, Watts:1500, No. of Position of regulator: 6/6 |
|---|
