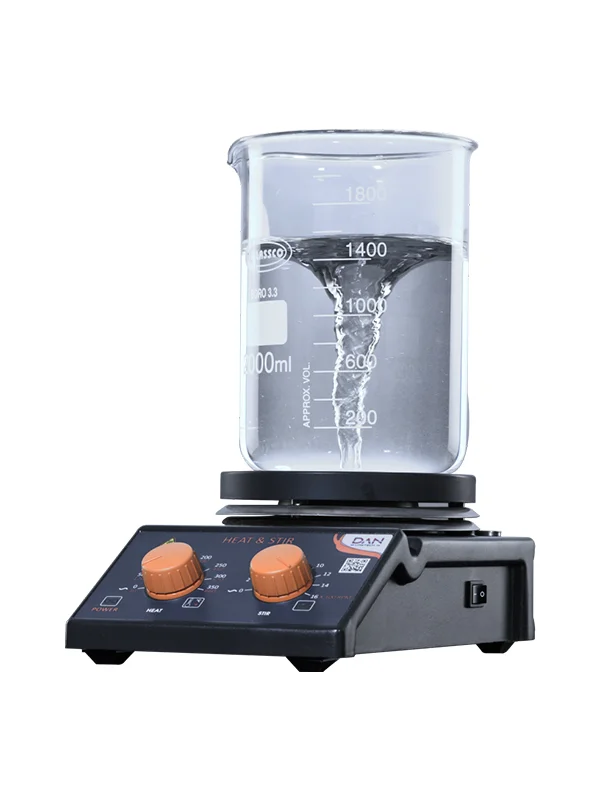

Analogue Magnetic Stirrer With Hotplate

Analogue Magnetic Stirrer With Hotplate

(SS & ALUMINIUM ALLOY CERAMIC COATED TOP)

  • PU coated aluminium alloy moulded body
  • Dual Knob operation for temperature & stir control
  • Hot top indicator for temperatures above 50°C
  • Installed with PT sensors for safety
  • Stir & heat reach indicator to ensure correct operation
  • Stirring & temperature indicator
  • Error indicator for failures
Item Code Volts Hz Watts
Qty Enquiry
710.DNAG.0123050650
610.DNAG.0123050650
710.DNAG.0211560650
610.DNAG.0211560650
700.DNAG.0211560650

Description

Technical Specification :

Heating plate material:SS 304 Grade with Ceramic/Aluminum Alloy with Ceramic Coating
Dimension of heating plate:Ø145 (For 610DNAG) | Ø150 (For 710DNAG)
Speed range:50 – 1600RPM
Maximum stirring bar Length:Can use upto 80mm bar (at lower speed)
Temperature range:Ambient to 350°C approx
Dimensions:273 x 160 x 102mm
Weight:3.0kg
Permissible ambient temperature:5 – 40°C
Permissible relative humidity:80%
Weight of Capacity:20 Ltr
IP Class:22

Additional information

MSHA

Item Code:710.DNAG.01, Volts:230, Hz : 50, Watts:650, Item Code:610.DNAG.01, Volts:230, Hz : 50, Watts:650, Item Code:710.DNAG.02, Volts:115, Hz : 60, Watts:650, Item Code:610.DNAG.02, Volts:115, Hz : 60, Watts:650, Item Code:700.DNAG.02, Volts:115, Hz : 60, Watts:650
