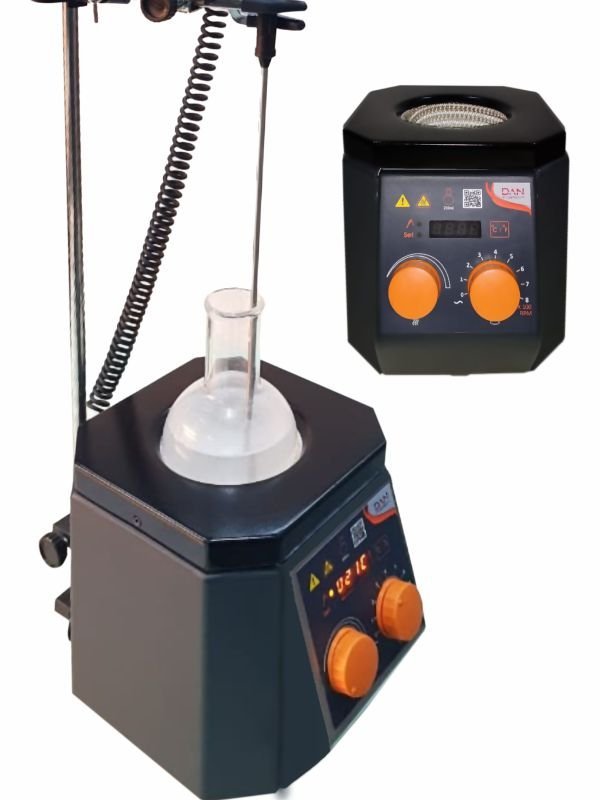

Heating Mantle with Stirrer – Digital
Heating Mantle with Stirrer – Digital - Image 2

Heating Mantle with Stirrer – Digital

(BlackDiamond™)

  • PU Coated Aluminium & Stainless Steel body
  • Dual knob operation
  • Glass fiber mantle provides uniform heating of flask
  • Hot top indicator for user safety
  • Innovative spill collect system in case of breakage of flasks upto 5 Ltr
  • For round bottom flasks as per DIN 12347
  • Inbuilt PT temperature sensor for safety

Technical Specification:

Heating mantle body:Metallic, SS & Aluminium construction
Heating mantle material:Glass Fiber Yarn
Mantle capacity:Upto 5000ml
Temperature range:~400°C
Control accuracy:10%
Variable speed range:~800RPM
Weight:2.5 kgs
Permissible ambient temperature:5-40°C
Permissible relative humidity:80%
Voltage:230/115V
Frequency:50/60Hz
DIN EN 60529:IP 10

Also Known as: 1221.EU.01, 1221.EU.02, 1221.EU.03 , 1221.EU.04, 1221.EU.05, 1221.EU.06, 1221.EU.08

Item Code(230V/50Hz) Item Code(115V/60Hz) Capacity(Ltr) Watts Dimension
Qty Enquiry
1221.DNEU.011221.DNUS.01100*220167x240x182
1221.DNEU.021221.DNUS.02250*220167x240x182
1221.DNEU.031221.DNUS.03500*270217x287x203
1221.DNEU.041221.DNUS.041000*370217x287x203
1221.DNEU.051221.DNUS.052000*520309x390x262
1221.DNEU.061221.DNUS.063000*520309x390x262
1221.DNEU.081221.DNUS.085000*670309x390x262

Description

Heating Mantle with Stirrer – Digital (BlackDiamond™)
Download our Catalogue for more details
For India Visit our Website

Additional information

Black Diamond

Item Code(230V/50Hz):1221.DNEU.01, Item Code(115V/60Hz):1221.DNUS.01, Capacity(Ltr):100*, Watts:220, Dimension:167x240x182, Item Code(230V/50Hz):1221.DNEU.02, Item Code(115V/60Hz):1221.DNUS.02, Capacity(Ltr):250*, Watts:220, Dimension:167x240x182, Item Code(230V/50Hz):1221.DNEU.03, Item Code(115V/60Hz):1221.DNUS.03, Capacity(Ltr):500*, Watts:270, Dimension:217x287x203, Item Code(230V/50Hz):1221.DNEU.04, Item Code(115V/60Hz):1221.DNUS.04, Capacity(Ltr):1000*, Watts:370, Dimension:217x287x203, Item Code(230V/50Hz):1221.DNEU.05, Item Code(115V/60Hz):1221.DNUS.05, Capacity(Ltr):2000*, Watts:520, Dimension:309x390x262, Item Code(230V/50Hz):1221.DNEU.06, Item Code(115V/60Hz):1221.DNUS.06, Capacity(Ltr):3000*, Watts:520, Dimension:309x390x262, Item Code(230V/50Hz):1221.DNEU.08, Item Code(115V/60Hz):1221.DNUS.08, Capacity(Ltr):5000*, Watts:670, Dimension:309x390x262
